Overview
Foundation SIPs are specifically engineered for below grade uses. The PWF (Permanent Wood Foundation) exterior sheathing resists wood decay.
SIP foundations have numerous advantages over traditional concrete foundations:
- Dry basements with no mustiness
- No framing required to insulate and finish basement
- No cracking
- Fast construction – no concrete to cure
Panel Sizes & Specifications
Thermal resistances stated for Canada table below comply with Division A, 1.2.1.1.(1).(b) of the National Building Code of Canada (NBC).
| Exterior Side | PWF 0.60 Plywood |
| Interior Side | PWF 0.60 Plywood |
| Length | 8', 9', 10' |
| Width | 4' |
| Thickness | 6.5" (R-48) 8.25" (R-55) 10.25" (R-70) 12.25" (R-85) |
| Exterior Side | PWF 0.60 Plywood |
| Interior Side | PWF 0.60 Plywood |
| Length | 8', 9', 10' |
| Width | 4' |
| Thickness | 6.5" (R-29) 8.25" (R-38) 10.25" (R-48) 12.25" (R-58) |
Installation Manual
Design Handbook

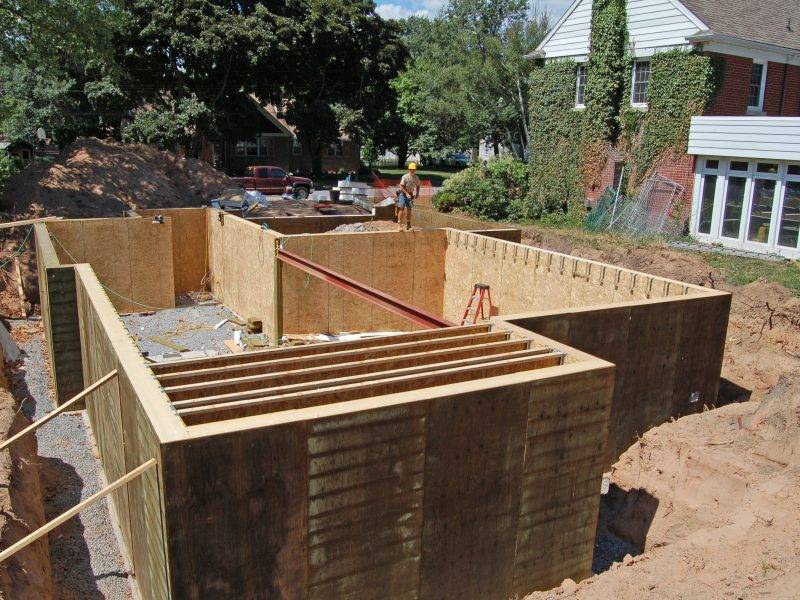

Installation Photos
